Unitron ZoomHD 14710-TS (Track Stand)

Unitron ZoomHD 14710-TS (Track Stand) Digital Inspection Microscope

Precision Visual Inspection, Simplified

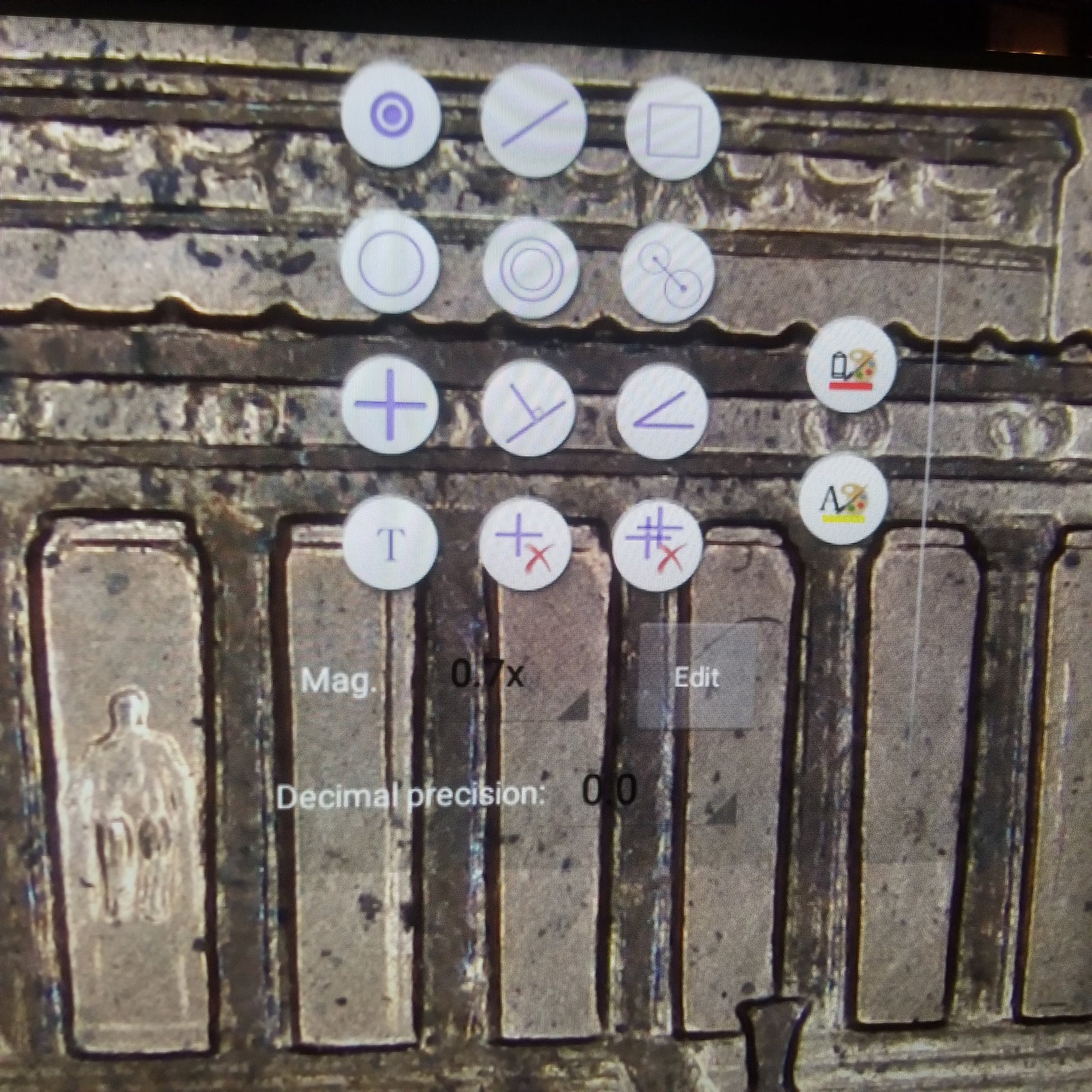

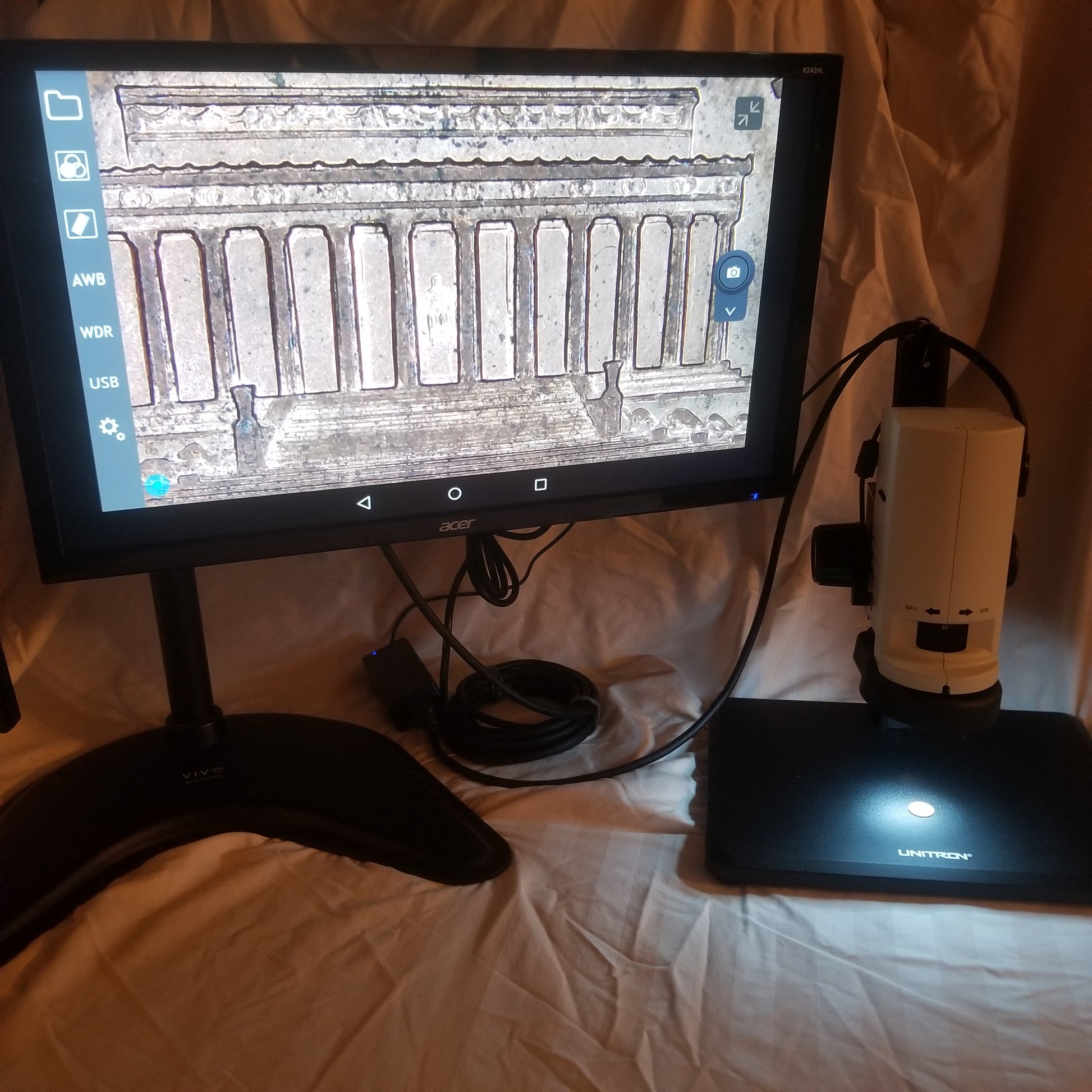

The Unitron ZoomHD 14710-TS delivers powerful high-definition inspection in a compact, stand-alone design built for fast-paced environments. Equipped with a 2.0MP CMOS camera that outputs crisp 1080p video at 60 frames per second, this system enables real-time visual analysis and image capture without the need for a computer. Simply connect it to any HD monitor using the included HDMI cable and start inspecting. Built in software allows for a variety of inspection and measurement tools.

Seamless Magnification Control

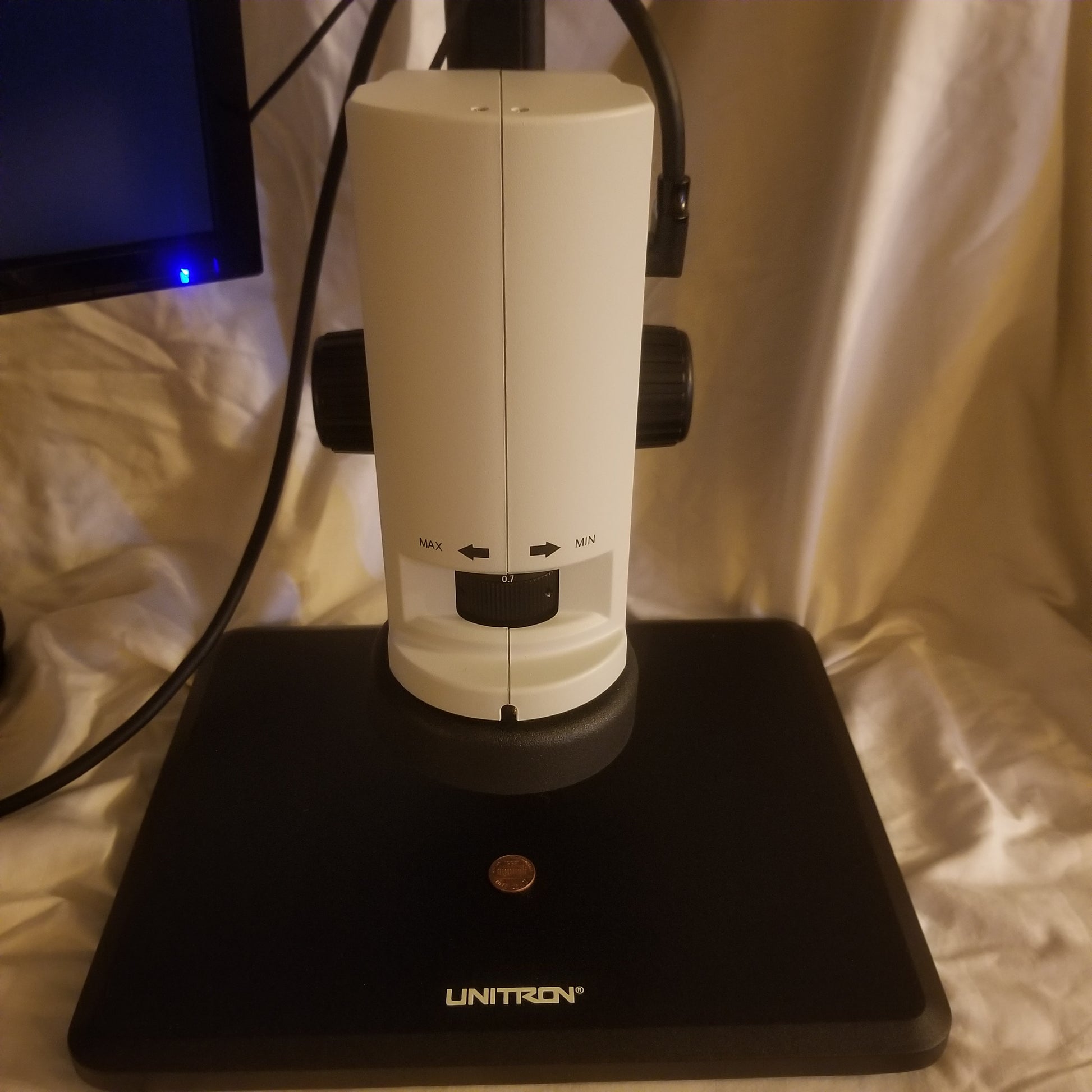

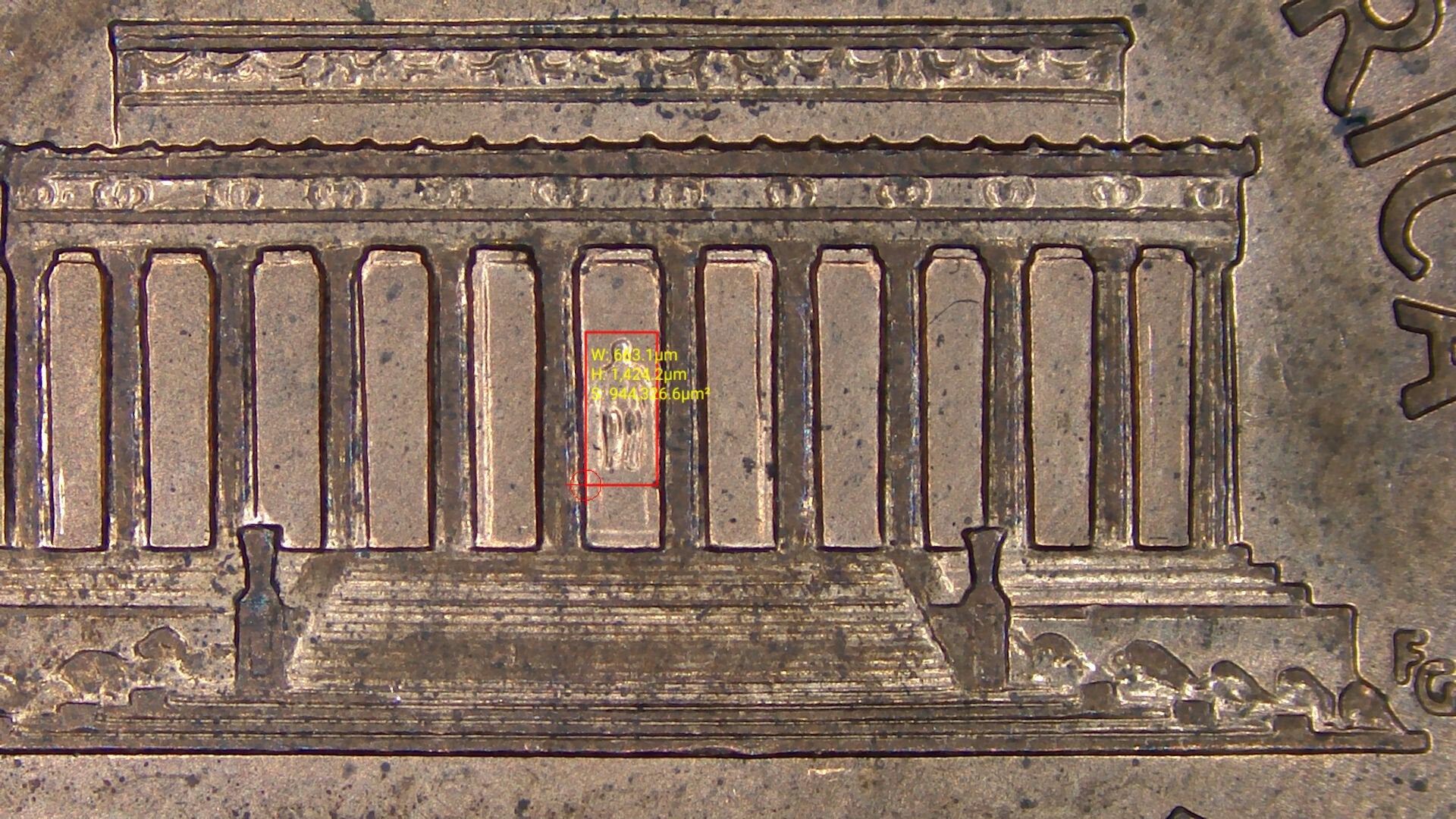

The ZoomHD offers a generous 7:1 zoom range from 0.7x to 5.0x with click stops at key magnifications, allowing users to quickly re-position and evaluate with consistency. The zoom control is conveniently located on the front of the microscope for intuitive operation. Illustrated well by the image of Abraham Lincoln seated in the Lincoln Memorial on the back of the penny, easily captured and measured using the Unitron ZoomHD.

Bright, Integrated LED Illumination

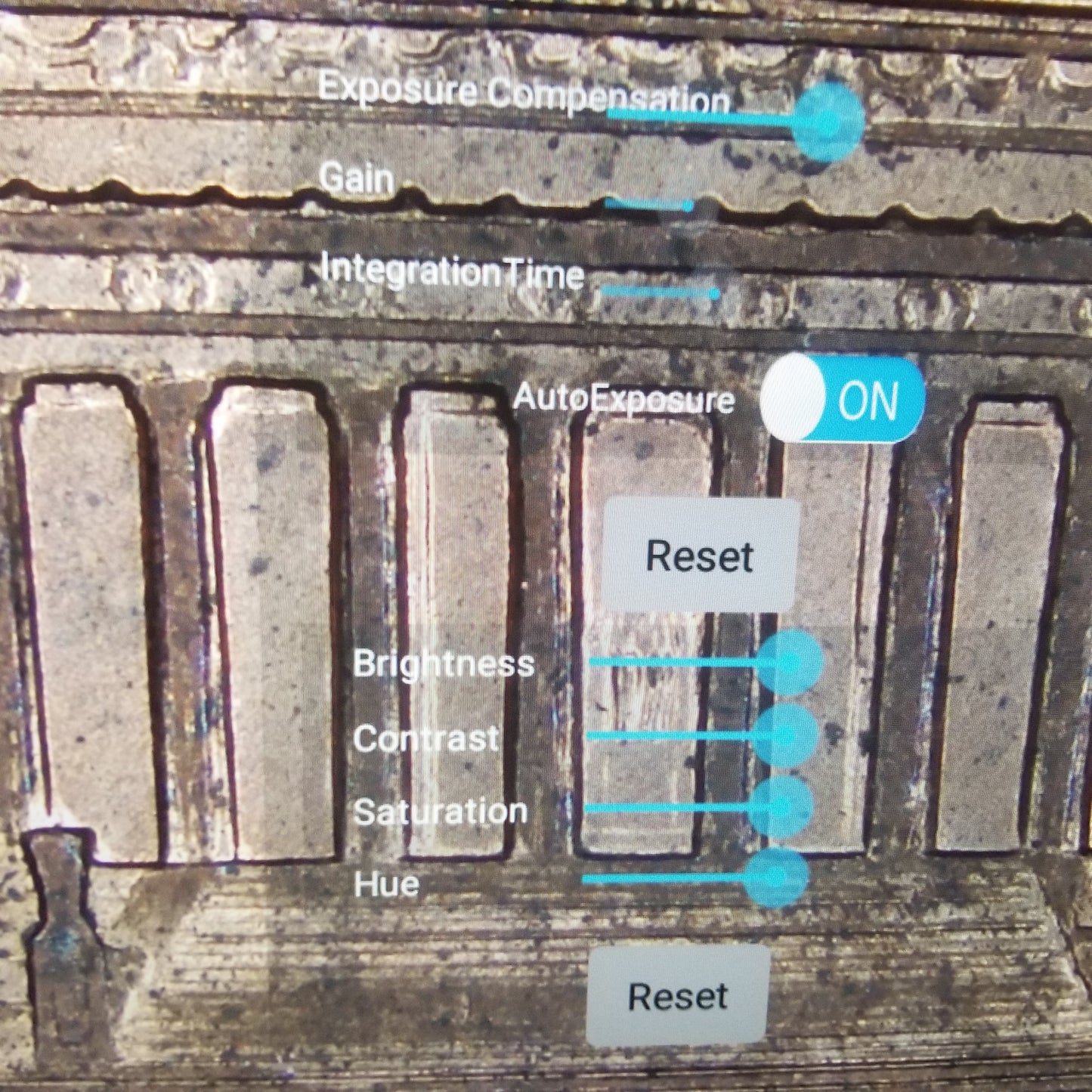

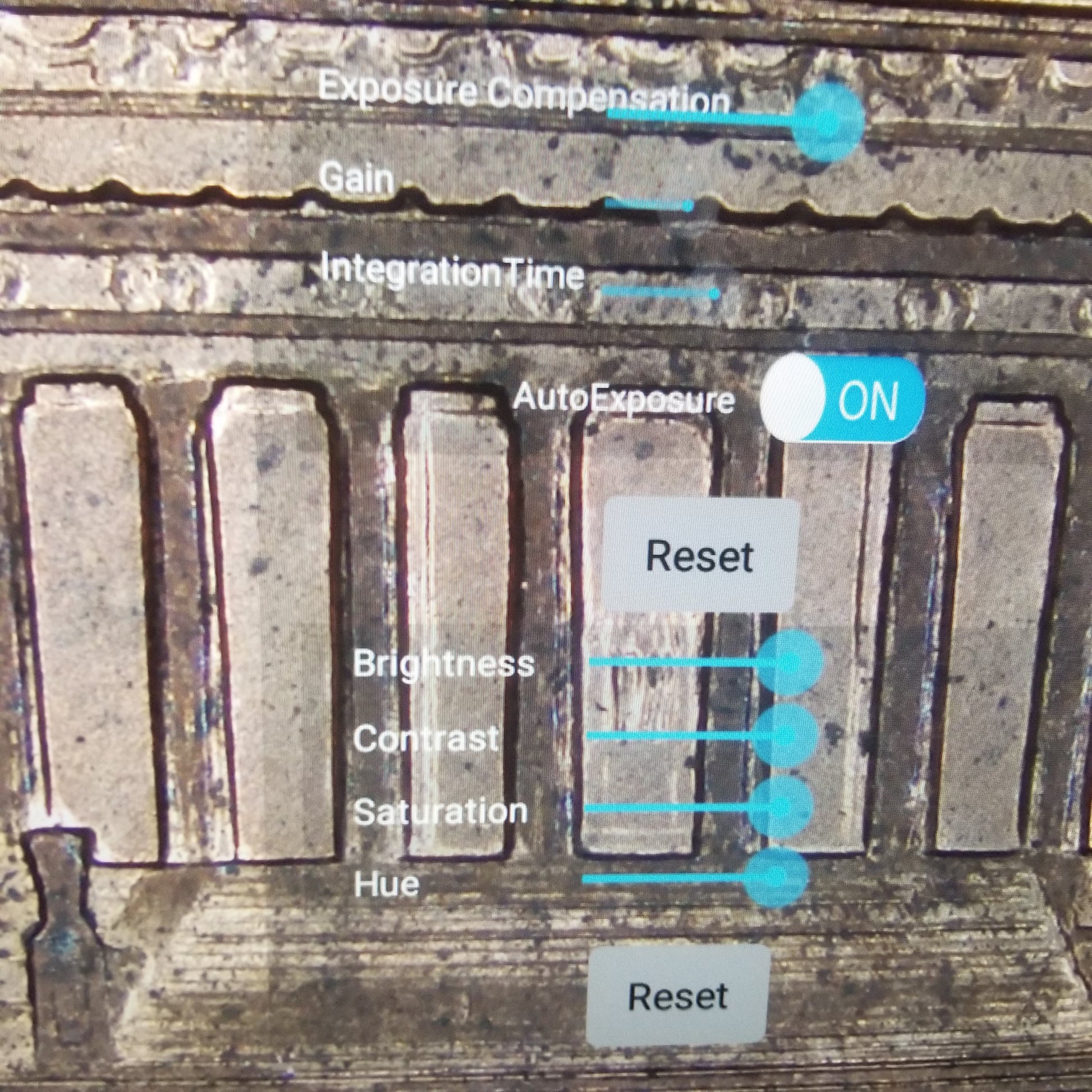

An integrated 56-LED ring light provides brilliant, evenly diffused lighting across the entire field of view. Adjustable intensity allows you to tailor illumination to the specific needs of your sample, while the 5000–5500K color temperature ensures accurate color representation. Software has controls for various color and contrast corrections that can be used to capture difficult features and find defects more easily.

Effortless Operation Without a PC

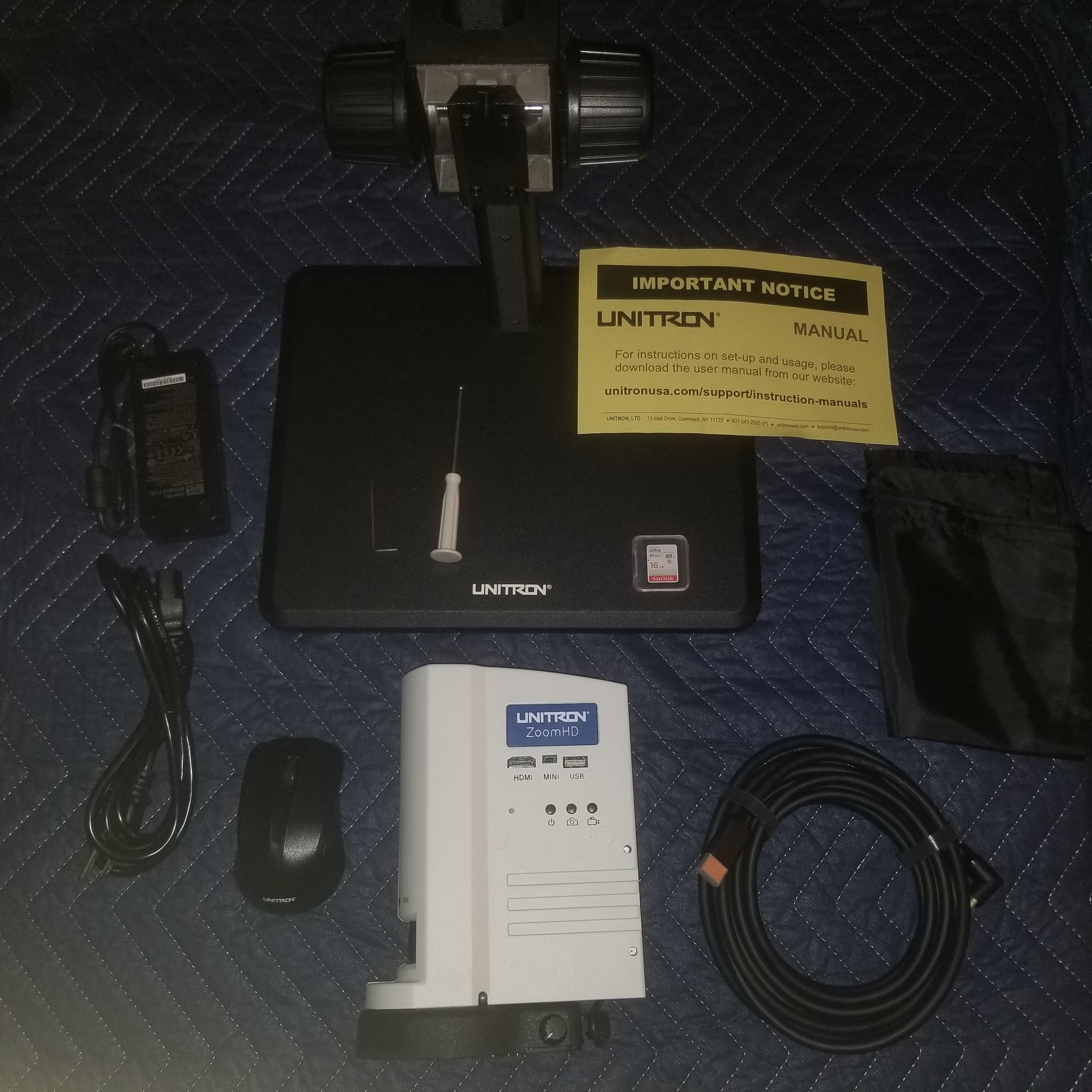

Designed for maximum efficiency, the ZoomHD requires no external computer. All camera controls are accessible on-screen via the included wireless mouse. Capture high-resolution images directly to a user-supplied USB flash drive up to 128GB in capacity.

Engineered for Professional Performance

Mounted on a large, plain base track stand, the ZoomHD provides 225mm of total focus range to accommodate a variety of sample sizes. The included 1x objective lens offers a 110mm working distance, while an optional 0.5x objective extends this to 170mm for greater flexibility.

Key Features

Camera: 2.0MP CMOS with WDR, 1080p at 60fps via HDMI

Zoom Range: 0.7x to 5.0x with click stops

Illumination: 56-LED ring light with adjustable brightness

Connectivity: HDMI output, 2 x USB 2.0

Storage: Save images to USB flash drive (user-supplied, up to 128GB)

Operation: Fully standalone with wireless mouse control

Stand: Track stand with 225mm focus range

Power Supply: Universal 100–240V, 12V 3.3A

Whether you're performing electronics inspection, medical device QA, or general lab analysis, the Unitron ZoomHD 14710-TS offers the clarity, control, and convenience required for high-throughput environments, all in a space-efficient package!
